One Control Minimal Series 1 Loop Box
Product Nr.:
10024719
session Walldorf:
available in our warehouse, please contact us!
session Frankfurt:
Currently not at the location
Take back old products
GPSR Information
Product information

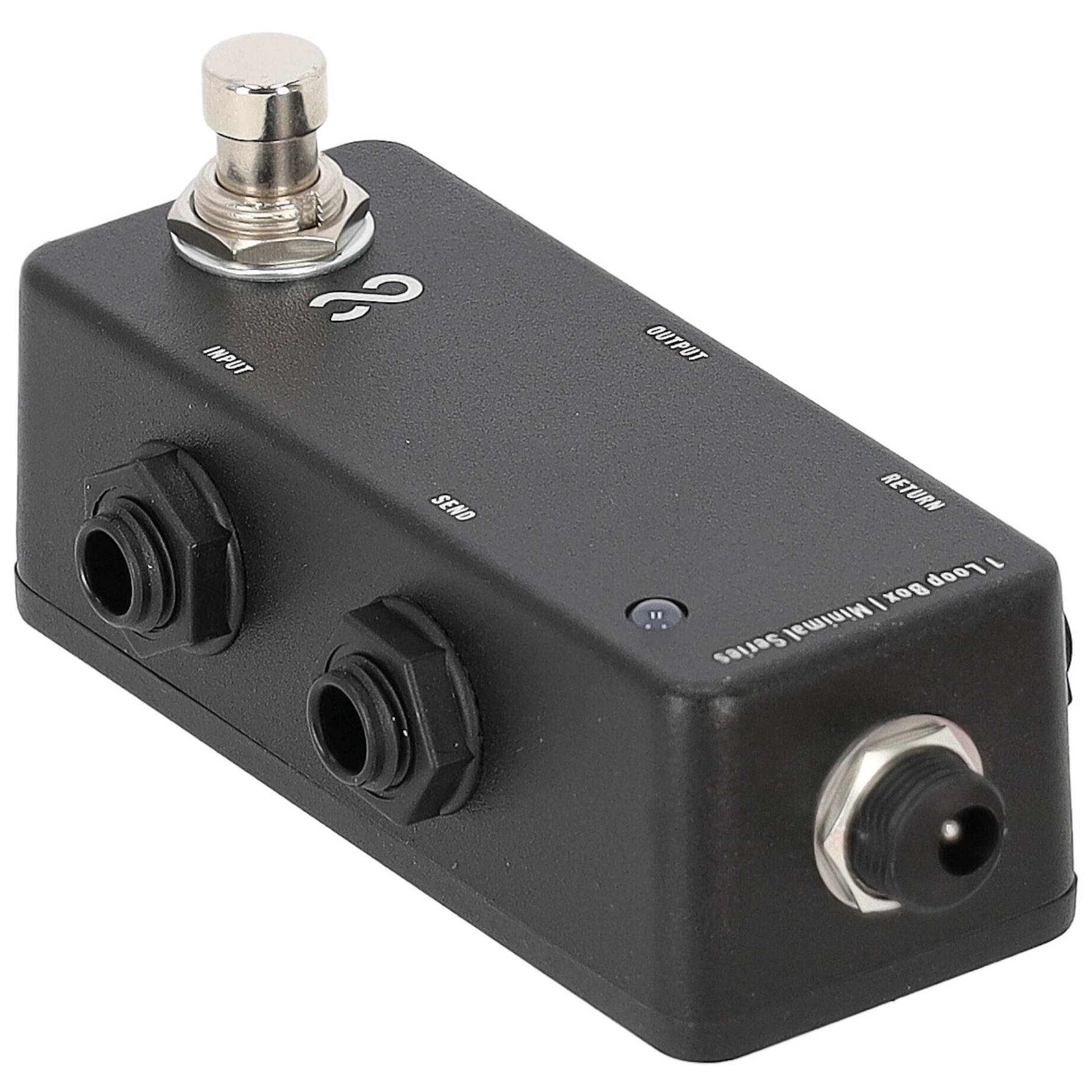

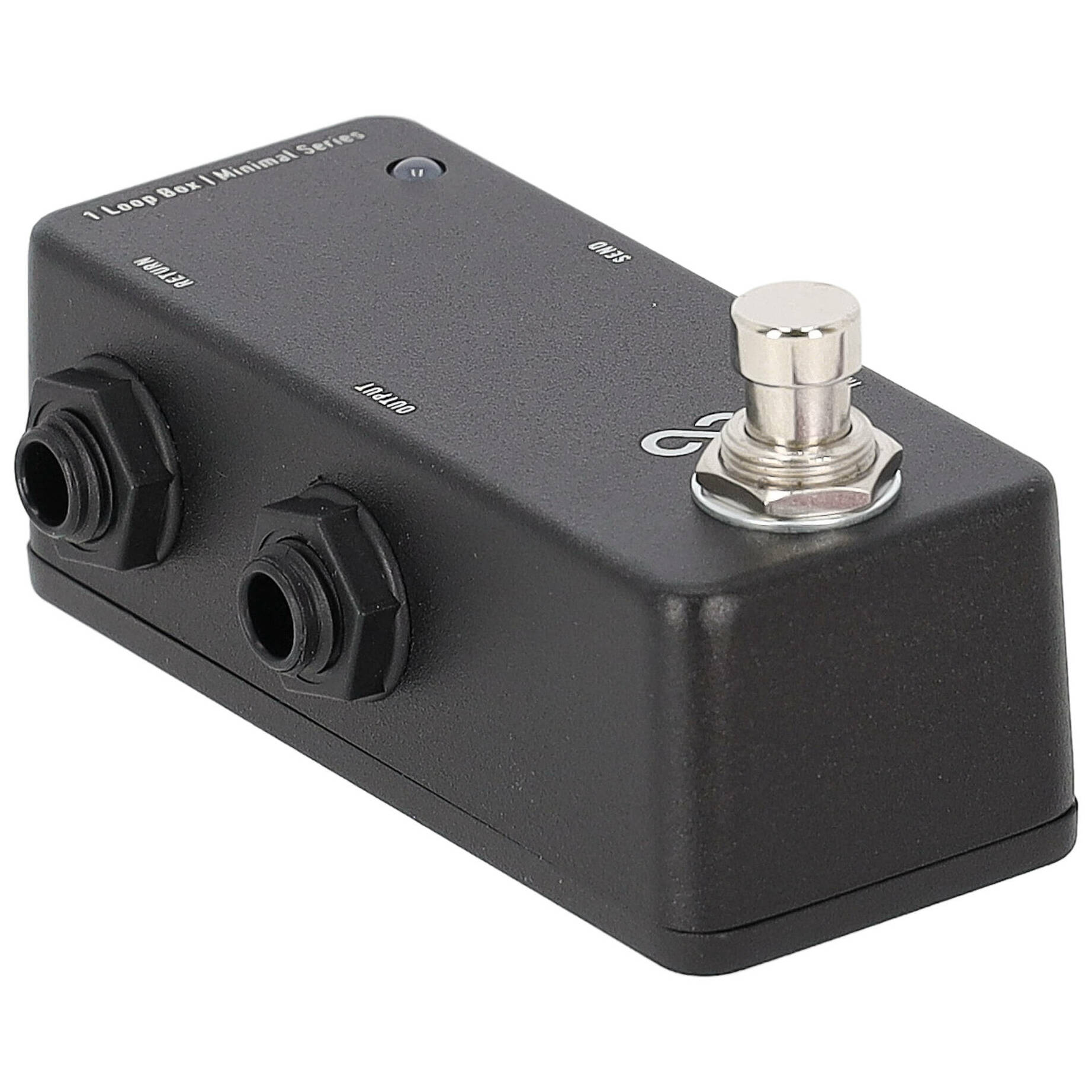

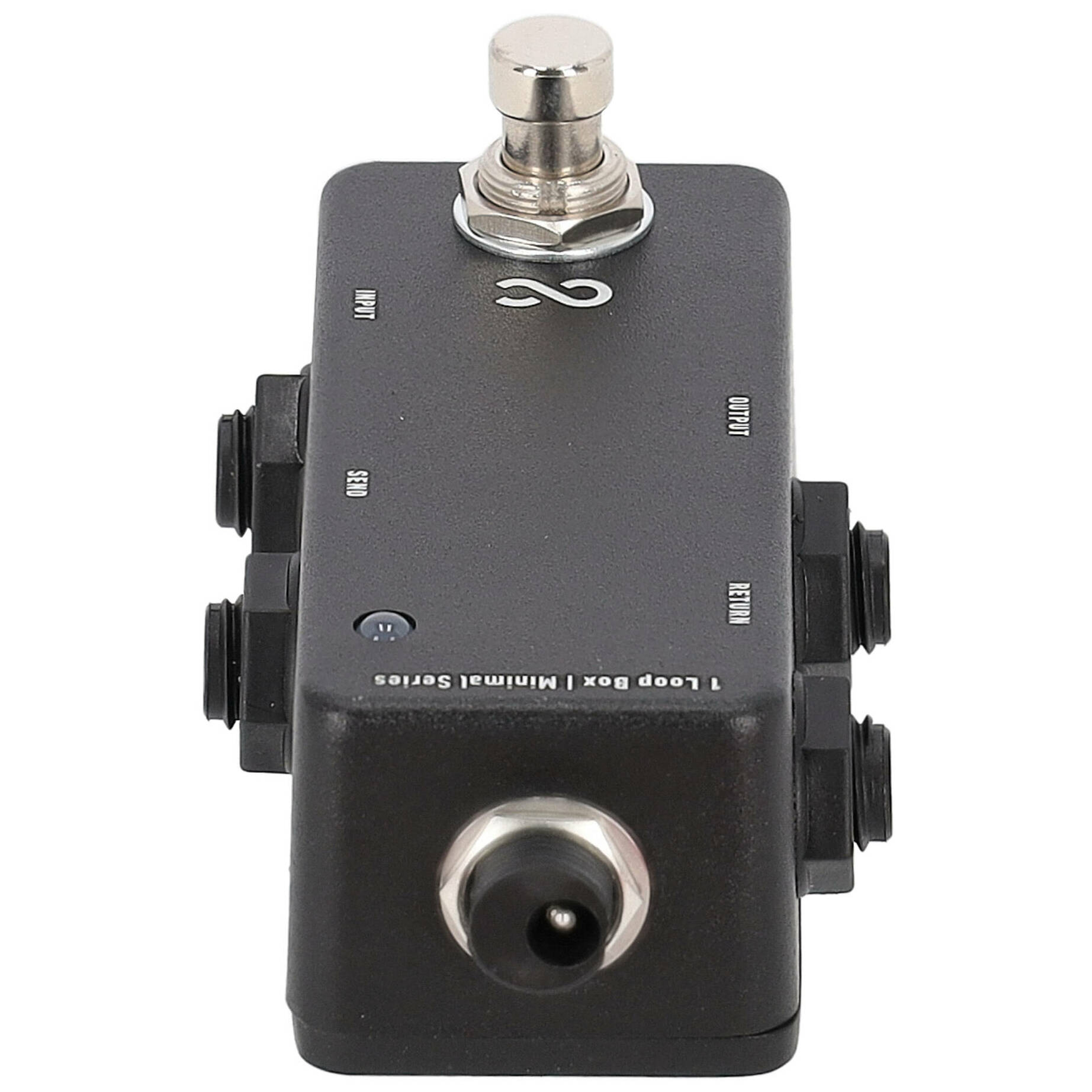

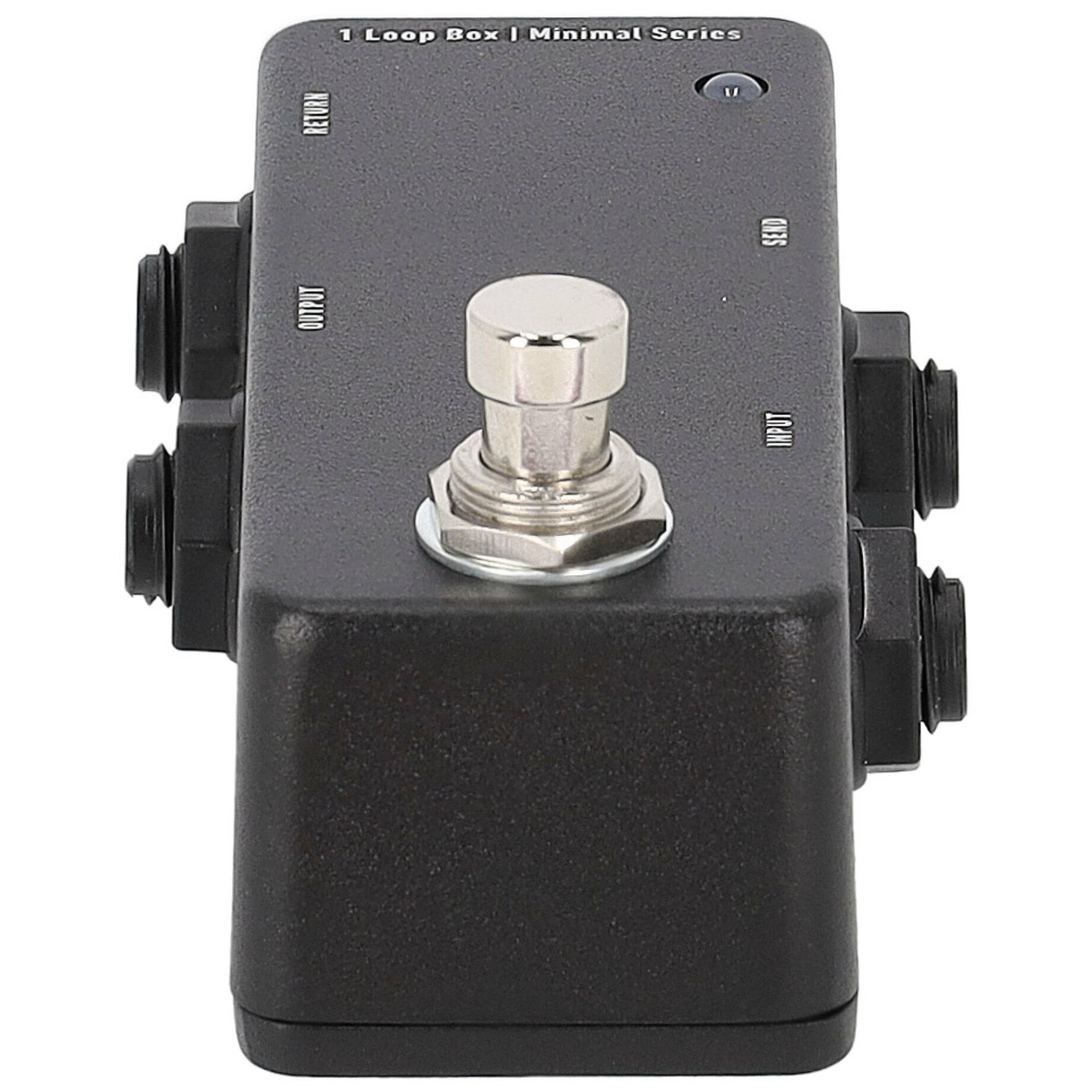

The One Control 1 Loop Box was developed as the smallest possible true bypass loop switcher for an effect loop. Through the targeted optimization and special arrangement of the circuit boards, One Control is the first manufacturer in the world to succeed in building such a small true bypass looper on a modern PCB basis. The design was developed with special care to create extremely small PCBs that fit into the compact enclosure of the 1 Loop Box. In addition to its small size , the circuit was also designed to be much more robust and durable than comparable switches. The 1 Loop Box can be used for many different purposes. When the 1 Loop operates in bypass mode, the input is routed directly to the output jack. When the pedal is activated, the input comes from the send jack and the signal fed into the return jack is sent to the output. This means that the One Control 1 Loop Box can be application not only as a true bypass loop switcher but also as an A/B box, mute switch or input selector.
- true bypass looper for effects pedals
- Can be used as an A/B box or mute switch
- true bypass
- bypass footswitch
- Status LED
- Metal enclosure
- 6.3 mm Mono jack input/output
- 6.3 mm Mono jacks send/return
- power supply via optional 9V DC mains adapter, 2.1 x 5.5 mm barrel connector, polarity (-) inside
- Passive operation possible without power supply (status LED without function)
- battery powered not supported
- current consumption 1 mA
- dimensions (L x W x H) 101 x 53 x 49 mm
- weight 127g
- Amount of Loops: 1
- Amount of switches: 1
- Color/ Finish: White
- Connections: 2x 6,3 mm Jack (In, Out), 2x 6,3 mm Jack (Send, Return), 6,3 mm Jack (Loop)
- Design: Pedal
- Dimensions: 54 x 48 x 101 mm
- Includes: Looper
- Power Supply: external power supply, passive operation possible
- Special Features: 1-way looper, A / B switch, input selector, mute switch
- Subcategory: Looper
- Switch: Bypass
- Weight: 127 g
- suitable for: True bypass Looper for Effect Pedals
