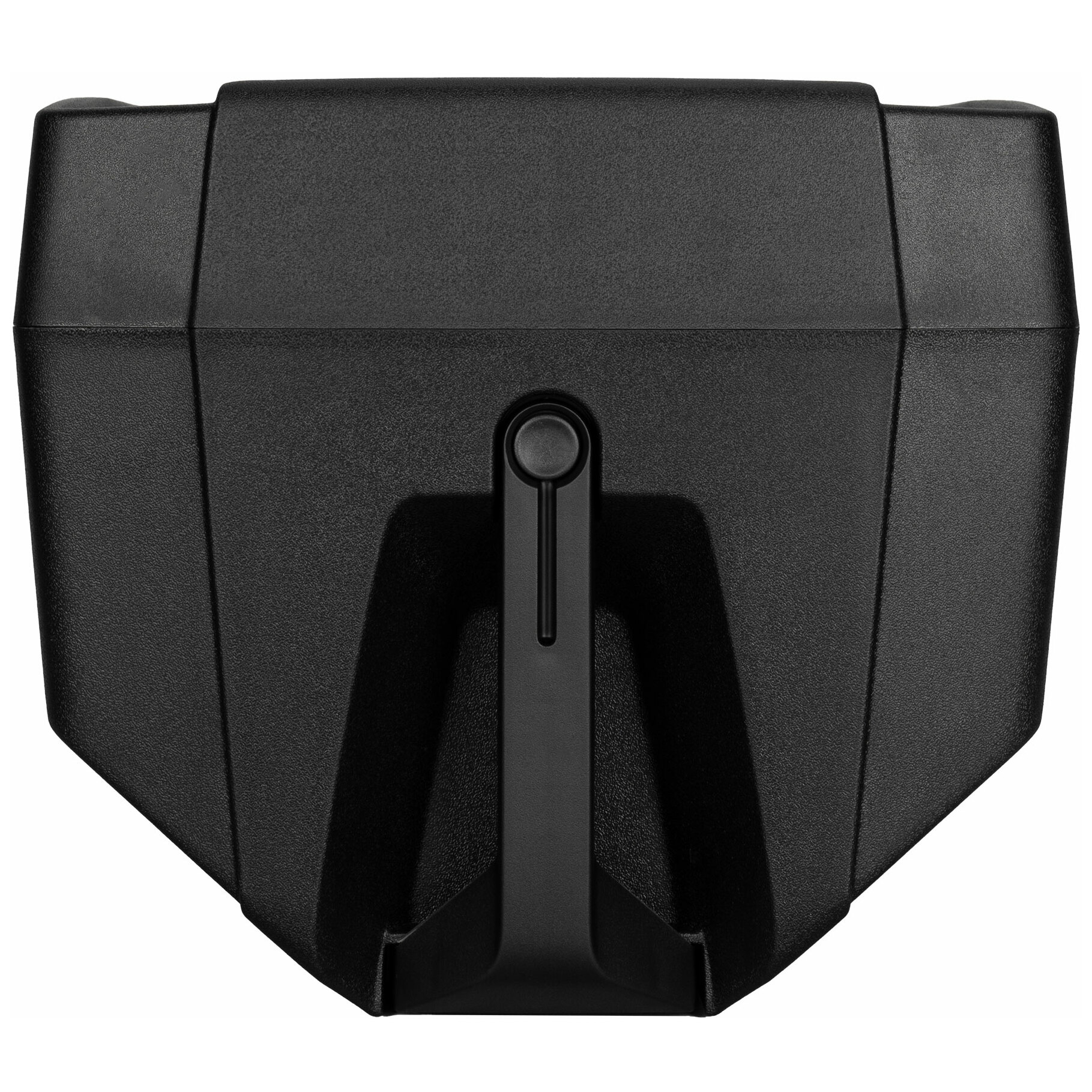

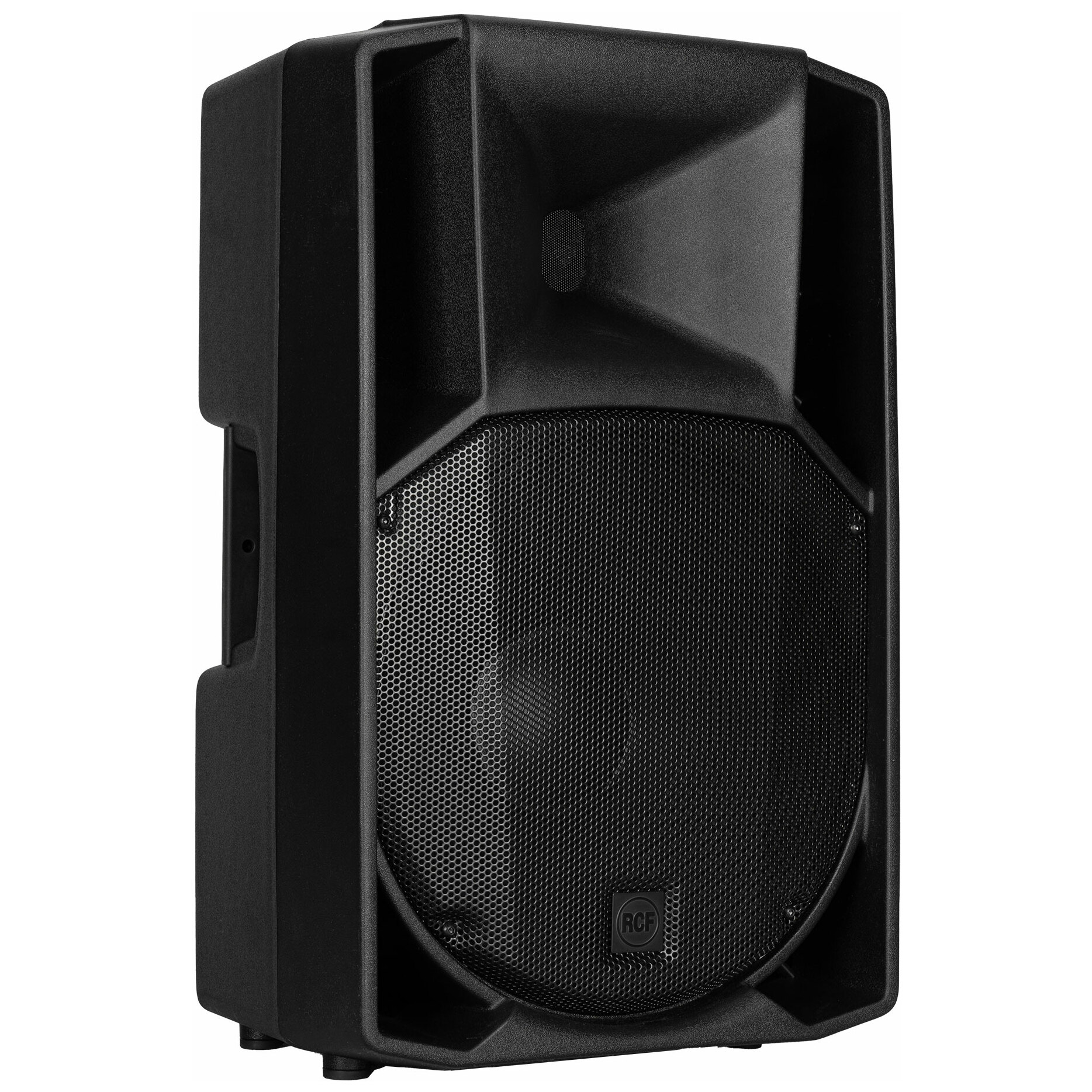

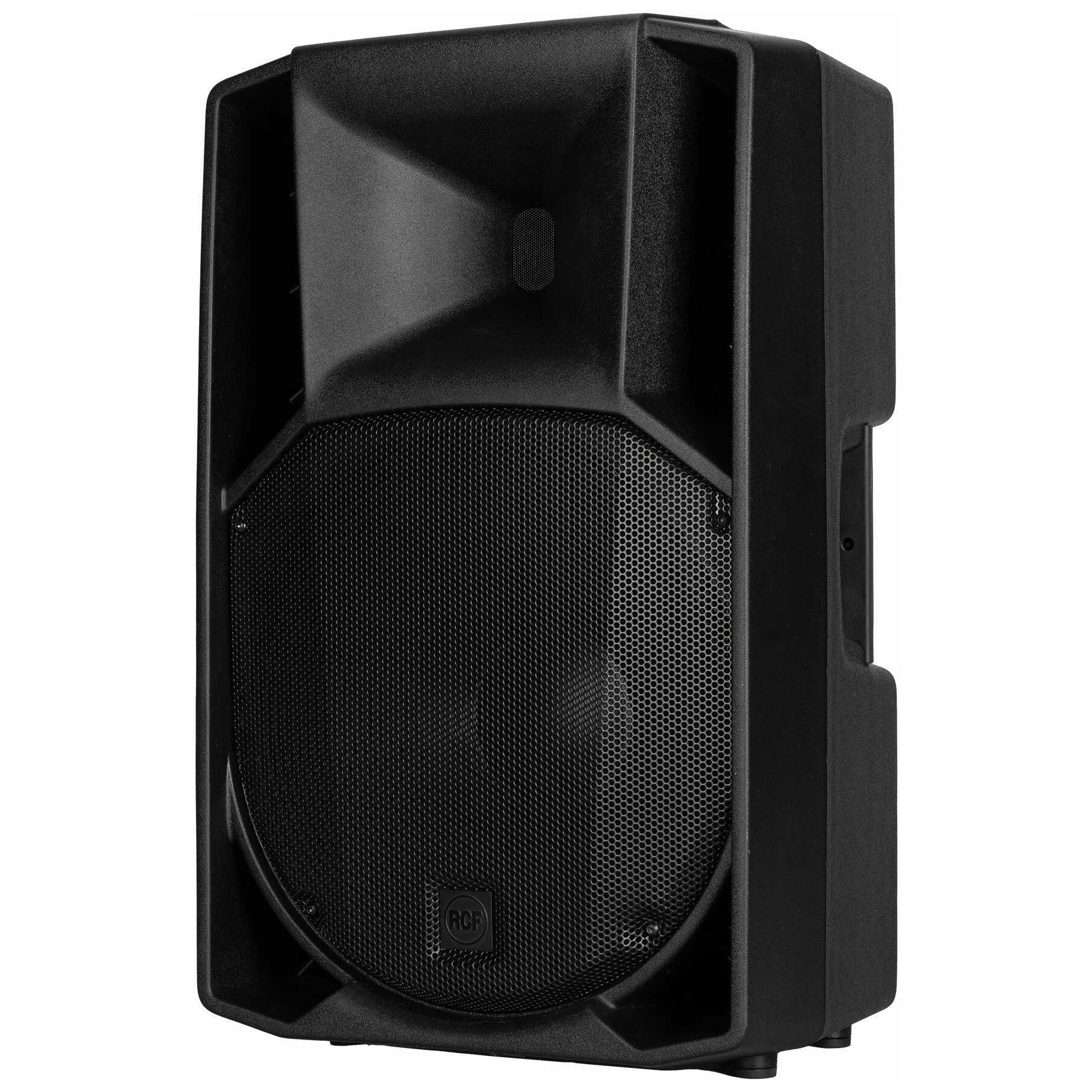

RCF ART 745-A MK5

€1,459.00 incl. VAT

Online available Usually shipped the next day!

Walldorf: Currently not at the location

Frankfurt: Currently not at the location

33 days return policy Free returns (DE) without giving reasons

Product number: 10032780

Why session?
Items from our huge range of in-stock items are usually dispatched the same day!

★★★★★

"Fast and uncomplicated delivery"

from Jochen H. from the 09/27/2022

Product information

The ART 745-A MK5 is the flagship of this speaker family. The neodymium compression driver with 4-inch voice coil and titanium dome ensures assertiveness and unique voice transparency. The 15-inch neodymium woofer offers precise, controlled bass reproduction with its extremely linear frequency response . All sound transducers are produced using the latest manufacturing technology. The 1400 watt amplifier is controlled by a digital signal processor that controls crossover, EQ, phase control, soft limiting and speaker protection.

133 dB maximum sound pressure level
1400 watts peak power
Constant directivity horn with large cover of 90° x 60°
Innovative digital signal processing
Neodymium compression driver with 4-inch voice coil and titanium dome
15-inch neodymium woofer
FiRPHASE technology
XBOOST Low Frequency Enhancer

frequency response: 45 Hz ÷ 20000 Hz
Max SPL @ 1m: 133dB
Horizontal radiation angle: 90°
Vertical radiation angle: 60°
Compression driver: 1 x 1.0'' neo
Woofer: 15''
Input signal: bal/unbal
Input jacks: XLR, Jack
output connections: XLR
Input sensitivity: -2 dBu/+4 dBu
Mic input sensitivity: -32 dBu
Crossover frequency: 650
Protection circuits: Thermal, RMS
limiter: Soft limiter
control: Volume, Boost, MIC/Line
total output: 1400W peak
RF range: 400W peak
depth frequencies: 1000W peak
cooling: Convection
Connections: VDE
Safety agency: CE compliant
hardware: 2 x M10

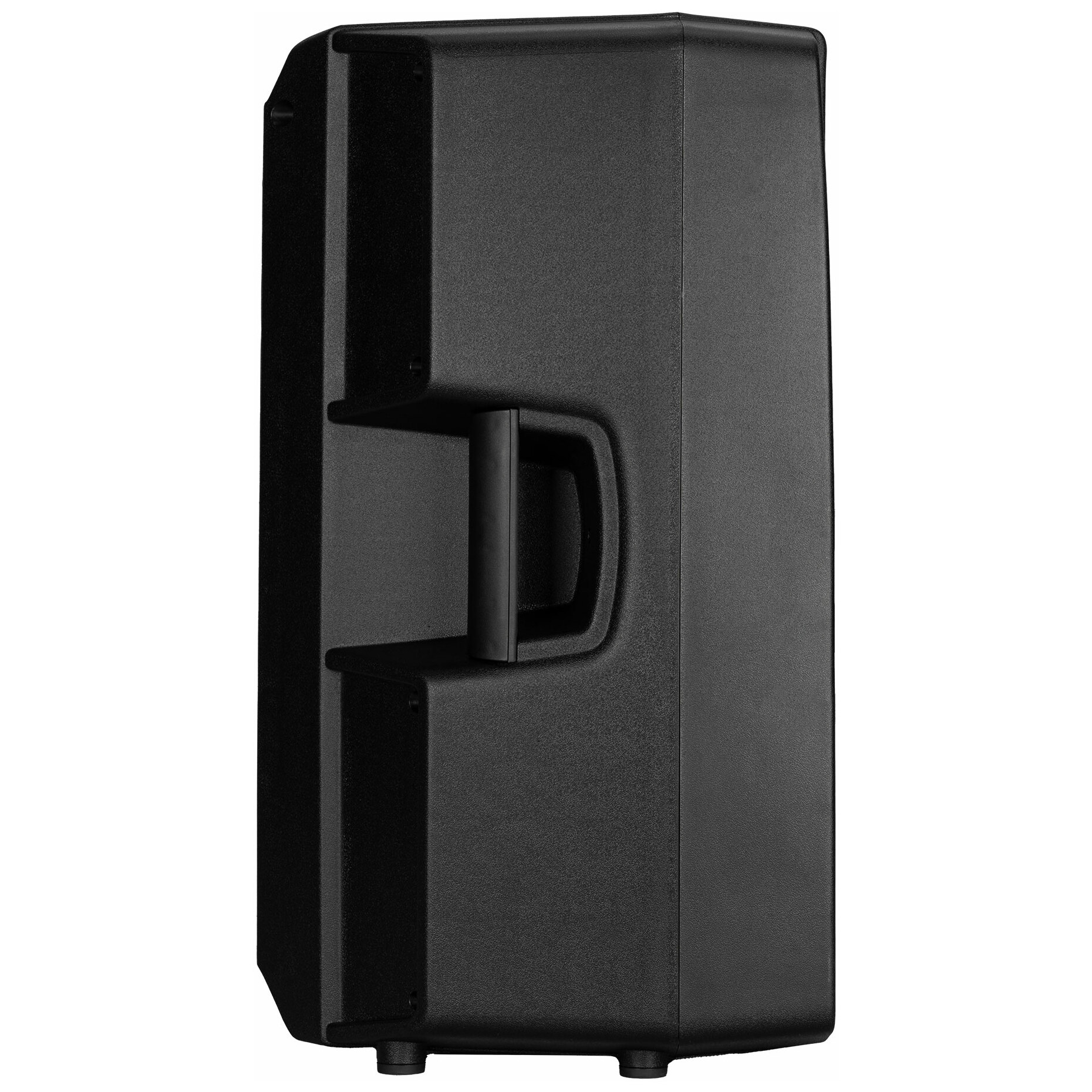

handles: 1x top, 1x right, 1x left
Pole Mount/Cap: Yes
color / finish: Black
height: 708 mm / 27.87 inches
width: 437 mm / 17.2 inches
depth: 389 mm / 15.31 inches
weight: 18.8 kg / 43.21 lbs

Bluetooth-streaming: No
Color / finish: Black
Controls: Gain control, EQ boost on/off, mic/line switch, power on/off
Dimensions top: 708 x 437 x 389 mm (HxWxD)
EQ: EQ switches flat/boost
Flyability: Yes
Frequency range: 45Hz - 20kHz
HF-/(MF) driver: 1"
Housing top: Plastic
Including: Loudspeaker, power cable
Inputs: XLR, 6.3 mm jack
LF-Driver: 1x 15" (38.10cm)
Low-cut: No
Max. SPL ( 1 W/1 m): 129dB
Mic-preamp: 1x mic-in
Mixer included: No
Outputs: XLR (Thru)
Pole flange: 35mm flange
Power amp output: 1400W
Presets: No
Radiation angle: 90°x60°
Simultaneously usable inputs: 1 channel
Subcategory: Full range box
Weight top: 18.8kg

About RCF

RCF has stood for quality PA made in Italy since 1949. Our range from RCF offers both active loudspeaker and monitors as well as complete PA systems and the right accessories.
