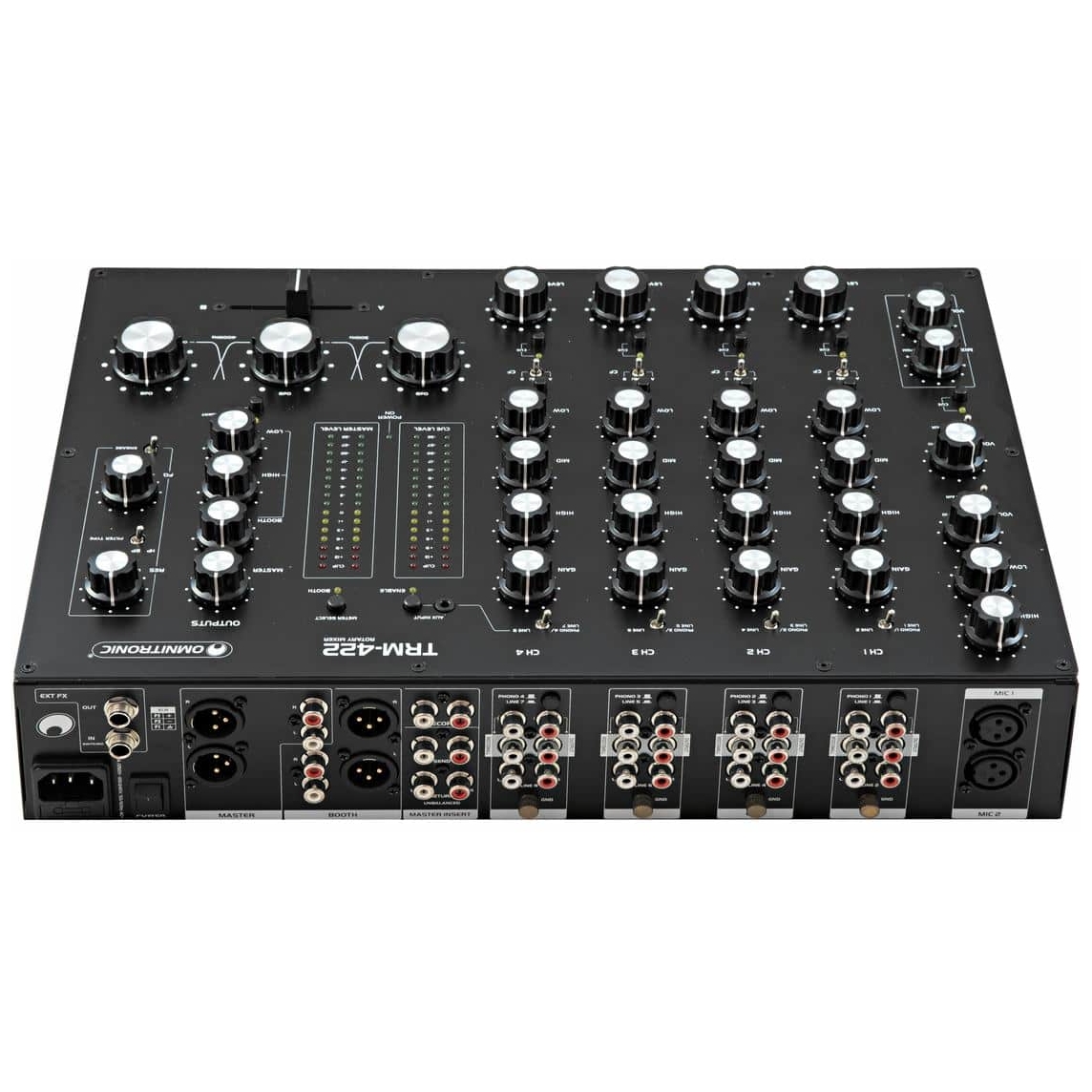

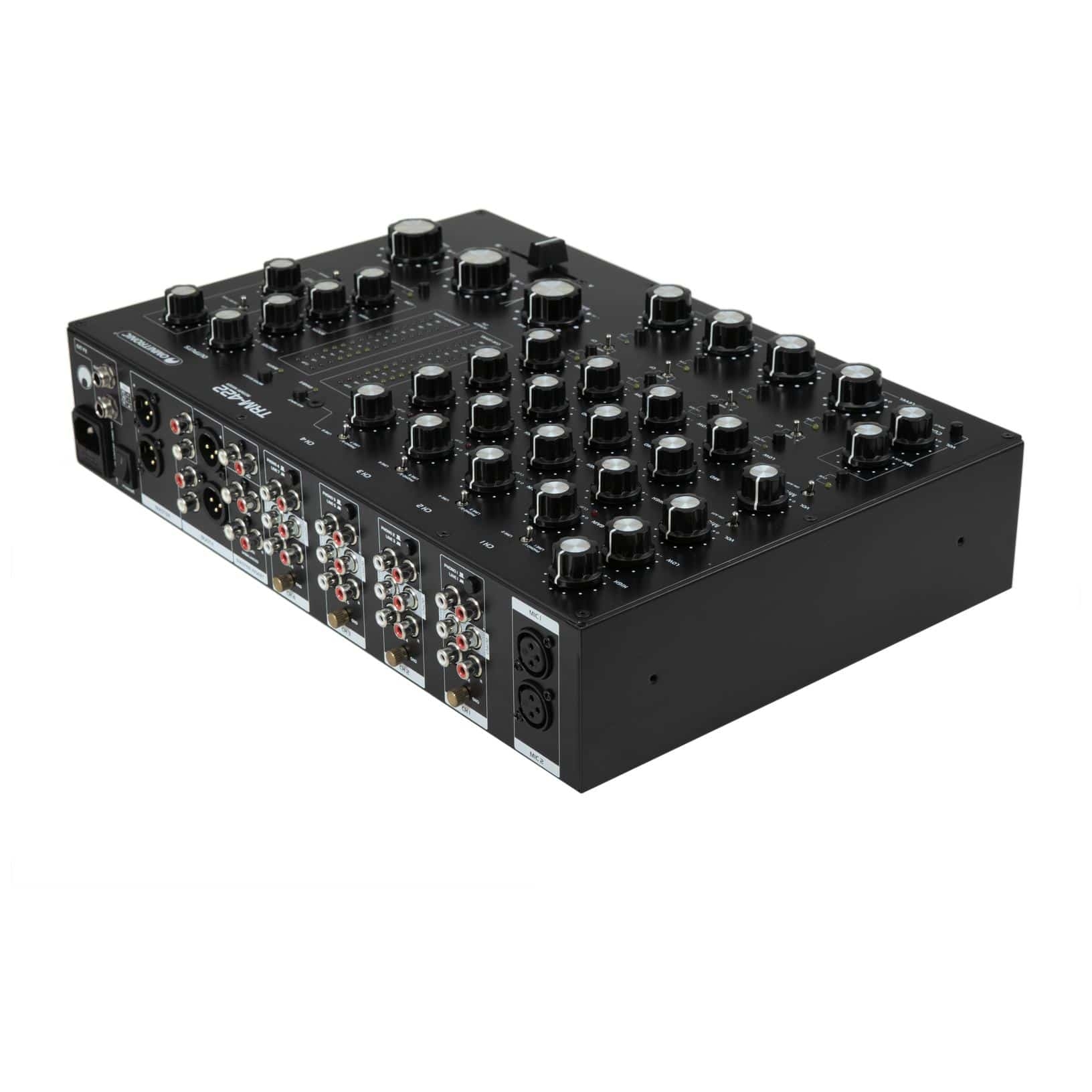

Omnitronic TRM-422
Product Nr.:
10027525
session Walldorf:
available in our warehouse, please contact us!
session Frankfurt:
âś… Available on site
Take back old products
GPSR Information
Product information
- 4-channel rotary mixer with 3-band frequency isolator and filter section
- 3-band master frequency isolator with classic ALPS rotary potentiometers
- Kill characteristic allows bass, mids and highs to be completely eliminated
- Filter section with HPF, BPF, LPF, resonance and sweep controls for creative editing of the frequency bands
- 4 stereo input channels with gain control, clip LED, 3-band EQ and phono/line switching
- 2 microphone input channels with gain control, 2-band EQ and on-air switches
- High-quality components guarantee a long life and excellent sound properties
- 16-digit stereo LED level meter, switchable between master and booth output
- Booth output with separate 2-band EQ and volume control
- PFL section with 16-digit stereo LED level meter, volume control, PFL/main balance control and cue mix/split function
- Crossfader in VCA technology with adjustable crossfade characteristics
- 2 effects paths for connection external effects devices
- 4 direct outputs for timecode applications
- 483 mm rack mounting possible with the included mounting brackets
- Table desk enclosure
- Bluetooth: no

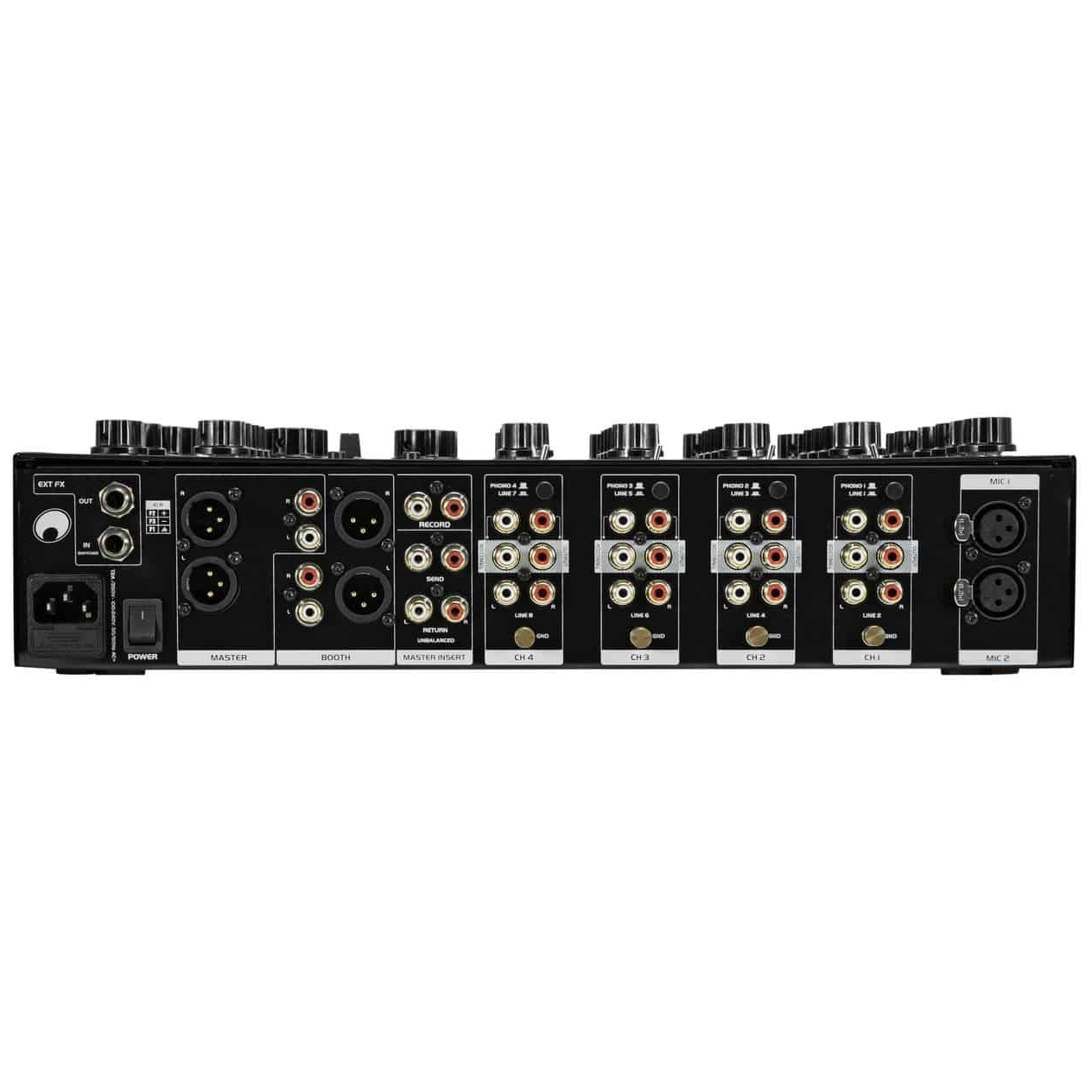

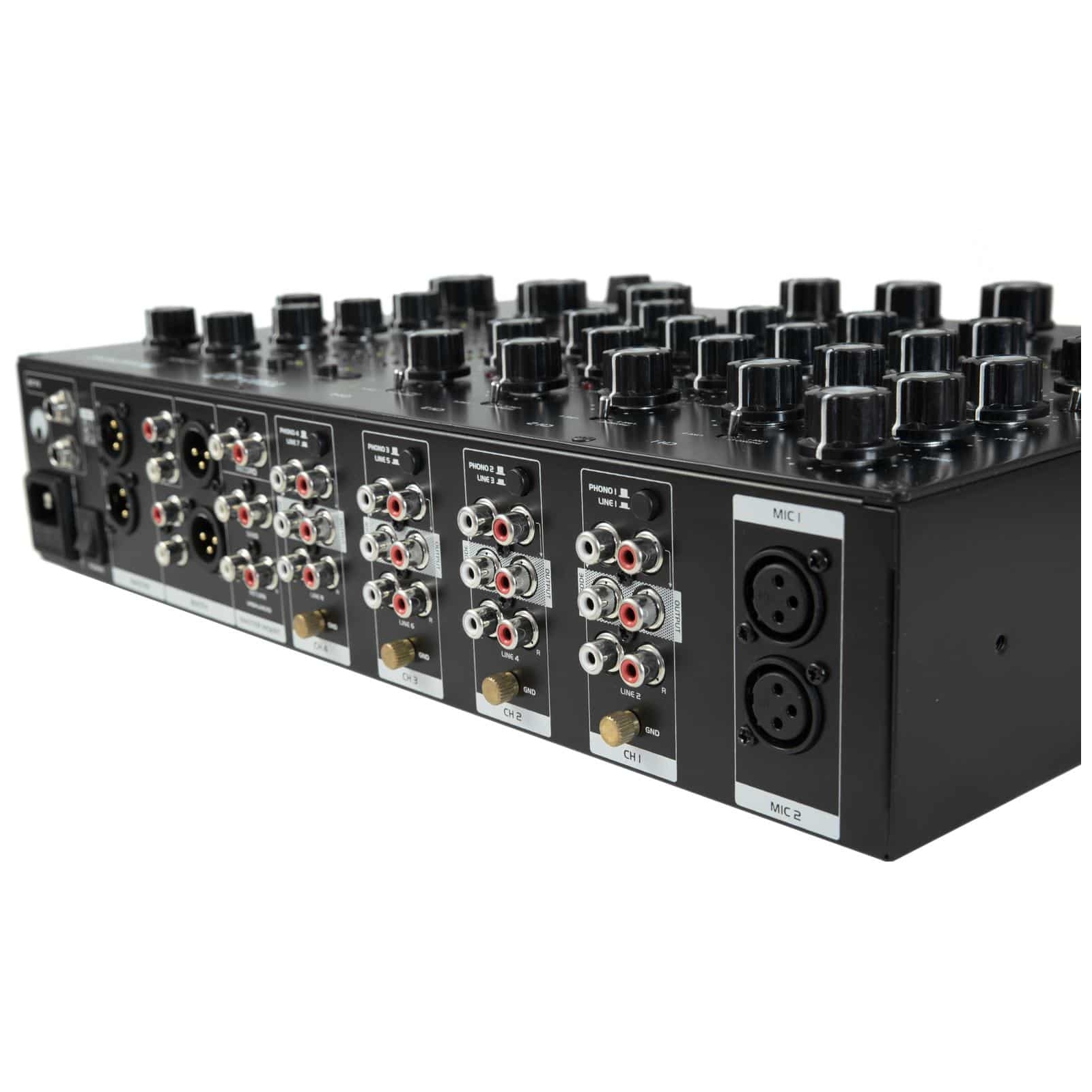

- Connections: Inputs: 4 x line via stereo cinch; 4 x line/phono via stereo cinch; 2 x microphone via 3-pin XLR; 1x AUX returns via 1 x 6.3 mm jack socket (stereo) // outputs: 2 x headphones; 1x 3.5 mm and 1x 6.3 mm jack socket; 1 x Rec. via stereo cinch; 2 x B
- Design: Table top
- Dimensions: 410x285x105mm
- EQ: 3 Band EQ per Channel
- Effects: None
- Enclosure: Metal
- Faders: 4x Channel Fader, 1x Crossfader
- Headphone Jack: 6,3 mm Stereo Jack, 3,5 mm Stereo Jack
- Housing Colour: Black
- Mic-In: 2
- Number of channels: 4-channel mixer
- Power supply: Built in power supply
- Special Features: Filter section with HPF, BPF, LPF, resonance and sweep controls, 3-band master frequency isolator with classic ALPS rotary potentiometers
- Stereo Line-In: 4
- Weight: 5.74kg
