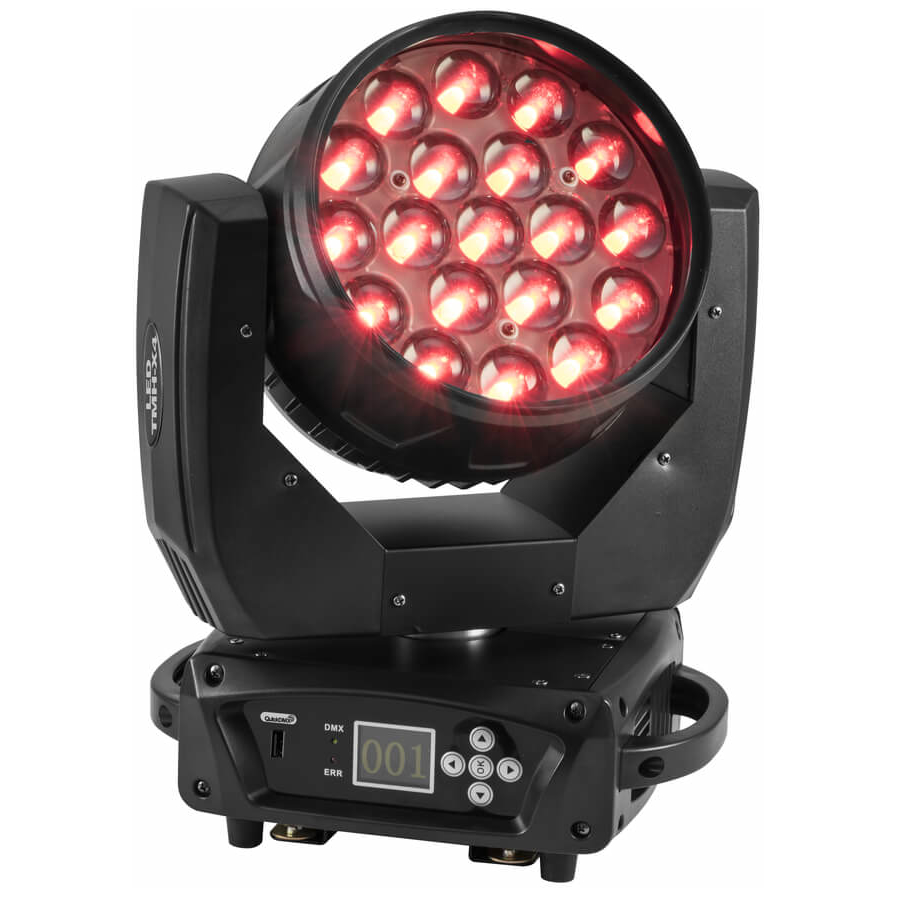

Eurolite LED TMH-X4 Moving head wash zoom
Product Nr.:
10026609
session Walldorf:
available in our warehouse, please contact us!
session Frankfurt:
Currently not at the location
Take back old products
GPSR Information
Product information
- Wash light with 19 strong 15-watt LEDs (4in1) and motorized zoom
- Three different LED segments that can be controlled individually via DMX
- Positioning within 540° PAN and 270° TILT
- Smooth RGBW colour mixing , preset colors, color changing and color blending
- Integrated show programs in auto and music mode
- Variable speed strobe effect
- Strobe effect via random generator
- dimmer
- Motorized zoom with 1-40° radiation angle
- Automatic position correction
- Exact positioning thanks to 16-bit resolution of the PAN/TILT movement
- Control board with color LCD for setting the DMX start address, PAN/TILT reverse, reset
- P-Con power connections for easy interconnection of up to 8 devices
- power supply: 100-240 V AC, 50/60 Hz
- Total connected load: 225 W
- Protection class: IP20

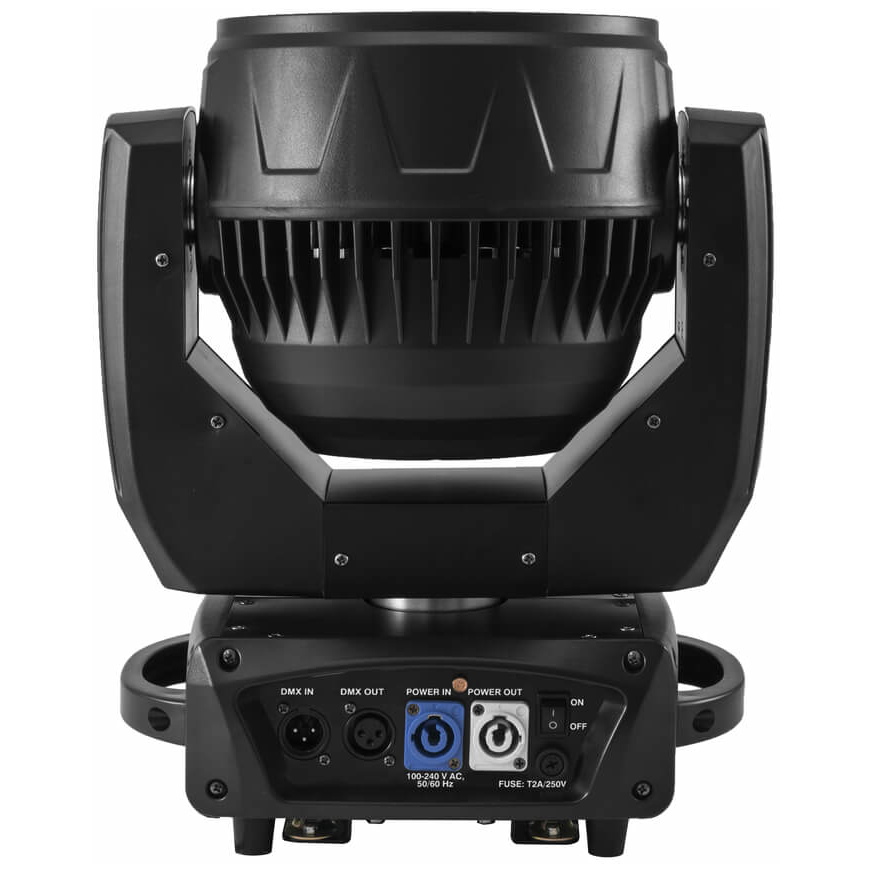

- power connection: P-Con power supply (blue), built-in version, power connection cable with protective contact plug
- Power output: P-Con (gray), built-in version
- fuse: 5 x 20 mm, T 2 A fuse , replaceable
- Lamp type: LED lamp
- LED: 19 x COB (chip-on-board) 15 W 4in1 QCL RGBW (homogeneous colour mixing)
- Max. tilting movement TILT: Exact positioning (16-bit resolution) 270° auto position correction (feedback)
- Max. panning movement PAN: Exact positioning (16-bit resolution) 630° auto position correction (feedback)
- equipment: Motorized zoom
- DMX channels: 16; 24
- dmx input: 3-pin XLR (M) built-in version
- dmx output: 3-pin XLR (W) built-in version
- cooling: temperature-controlled fan in the head; fan in the base
- controls:
- Standalone
- DMX
- QuickDMX via USB (optional)
- Music control via microphone
- Master/slave function
- Light J software
- EUROLITE LED PC Control 512 software
- EASY SHOW
- radiation angle: 1 - 40°
- radiation angle (1/2 peak): 1 - 25°
- radiation angle (1/10 peak): 8 - 40°
- illuminance in lux (lx):
- Tight red (R) 3m: 2779 lx, 6m: 763 lx
- Tight green (G) 3m: 7893 lx, 6m: 1841 lx
- Narrow blue (B) 3m: 1468 lx, 6m: 390 lx
- Narrow cold white (CW) 3m: 9558 lx, 6m: 2468 lx
- Narrow every 3m: 19553 lx, 6m: 5001 lx
- Wide red (R) 3m: 272 lx, 6m: 73 lx
- Far green (G) 3m: 583 lx, 6m: 160 lx
- Wide blue (B) 3m: 117 lx, 6m: 34 lx
- Wide cold white (CW) 3m: 740 lx, 6m: 211 lx
- Far every 3m: 1568 lx, 6m: 439 lx
- housing colour: Black
- Display type: Multicolor LCD display
- dimensions (WxDxH): 30.5 x 40 x 20 cm
- weight: 8.20 kg
- 16 bit Pan / Tilt movement: yes
- Bulbs: COB
- Color/ Finish: Black
- Cooling: Fan cooled
- DMX channels (modes): 16, 24 Channel
- DMX connection: 3 Pin
- DMX control: yes
- Dimensions: 305 x 200 x 400 mm
- LED: yes
- LED performance: 15 W
- Master / Slave: yes
- Number of LEDs: 19
- Pan: 540°
- Radiation Angle: 1° - 40°
- Setting on the device: LC-Display
- Sound to Light: yes
- Stand Alone Functionality: yes
- Strobe: yes
- Tilt: 270°
- Weight: 8,2 kg
- Wireless-DMX: W-DMX (optional)
- directional characteristic: Wash
- number of colours: RGBW colour mixing
- power connection: Powercon Compatible IN + OUT
- power consumption: 225 W
