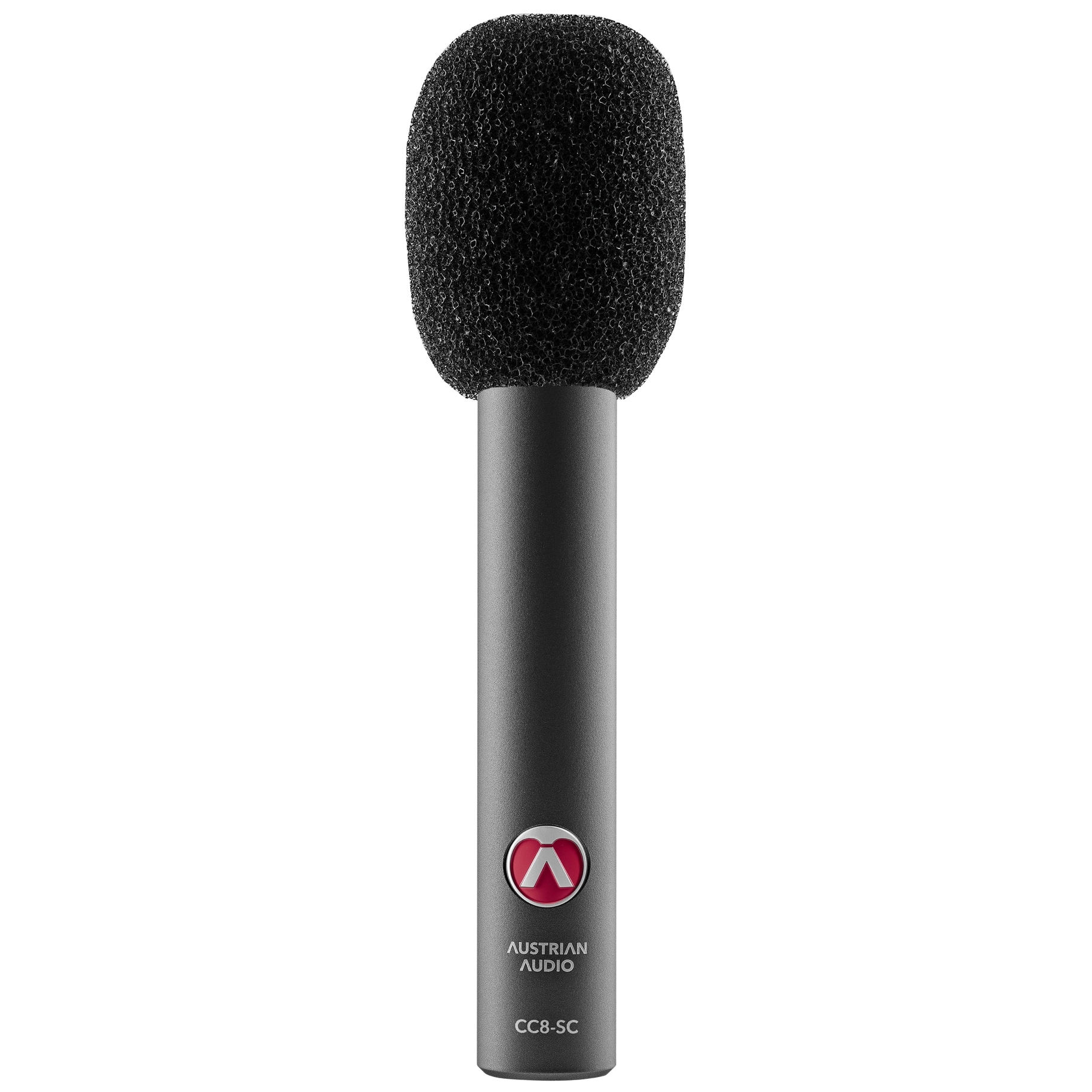

Austrian Audio CC8-SC
Product Nr.:
10038388
Take back old products
GPSR Information
session Walldorf:
available in our warehouse, please contact us!
session Frankfurt:
Currently not at the location
Features
-
diaphragm: Small-diaphragm
Increased sensitivity and precise high-frequency response.
Product information
Kleinmembran-Kondensatormikrofon mit Supernierencharakteristik
- Out-of-the-box matched paired mit jedem anderen CC8-SC (+/-0.5dB @ 1 kHz)
- Echtkondensator Technologie
- Präzise Supernierencharakteristik
- Best-in-class off-axis Frequenzgang
- Schaltbarer Hochpass Filter 60Hz (2te Ordung), 120 Hz (2te Ordnung)
- Schaltbare Vordämpfung -10 dB, -20 dB
- Gehäuse, Kappe und Mesh-Gitter aus Metal
Technische Daten:
- Richtcharakteristik: Superniere
- Frequenzbereich: 20Hz - 20kHz
- Empfindlichkeit: 18 mV/Pa
- Eigenrauschen: 13 dB (A)
- Max. Schalldruck: 155 dB SPL
- HP filter: 60 Hz (2te Ordnung), 120 Hz (2te Ordnung)
- Schaltbare Vordämpfung: -10 dB, -20 dB
- Impedanz: 275 Ω (symmetrical)
- Lastwiderstand: > 1 kΩ
- Spannungsversorgung: 48 V (< 3 mA)
- Anschluss: XLR 3 pin
- Abmessungen: 140 x 23 x 23 mm
- Gewicht: 160 g

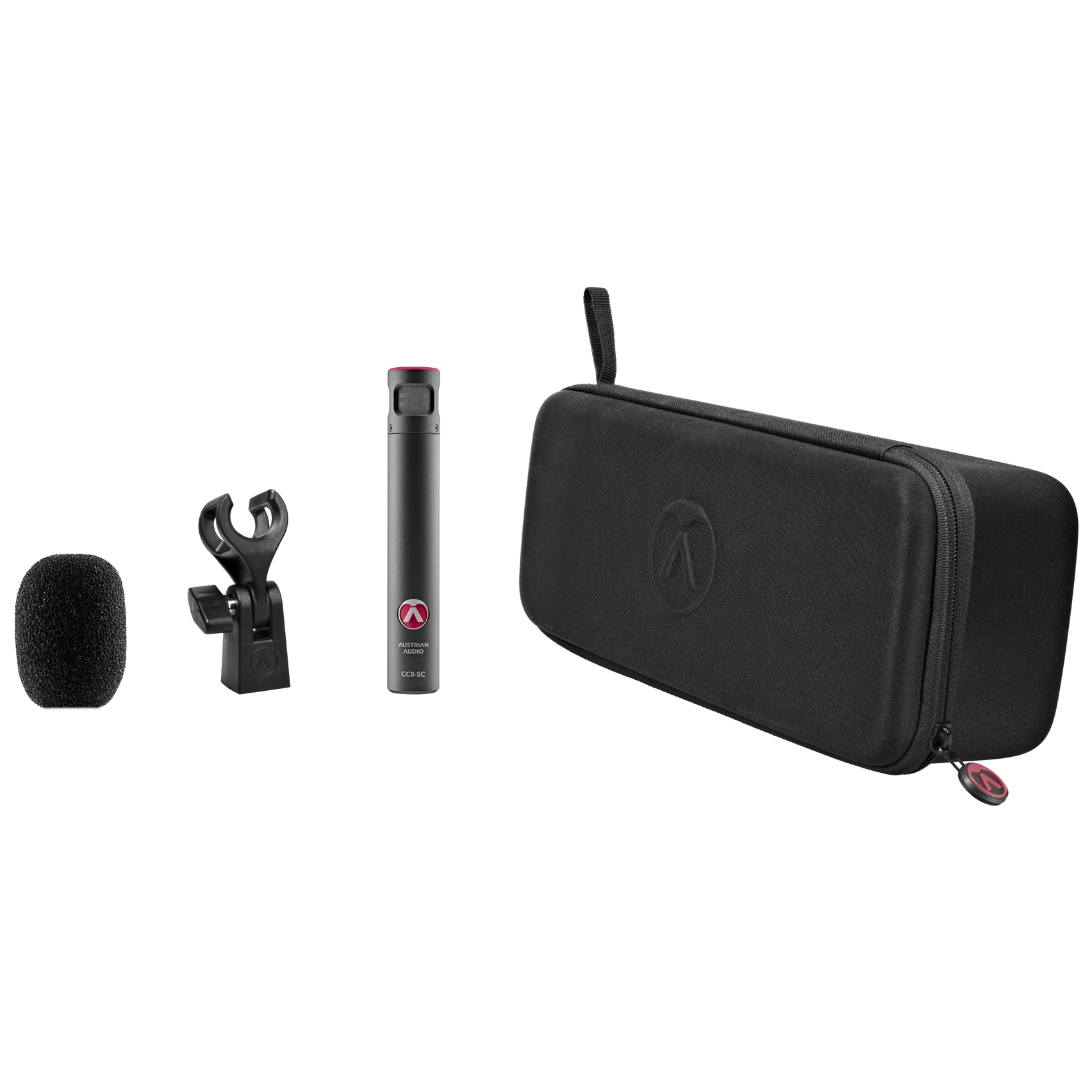

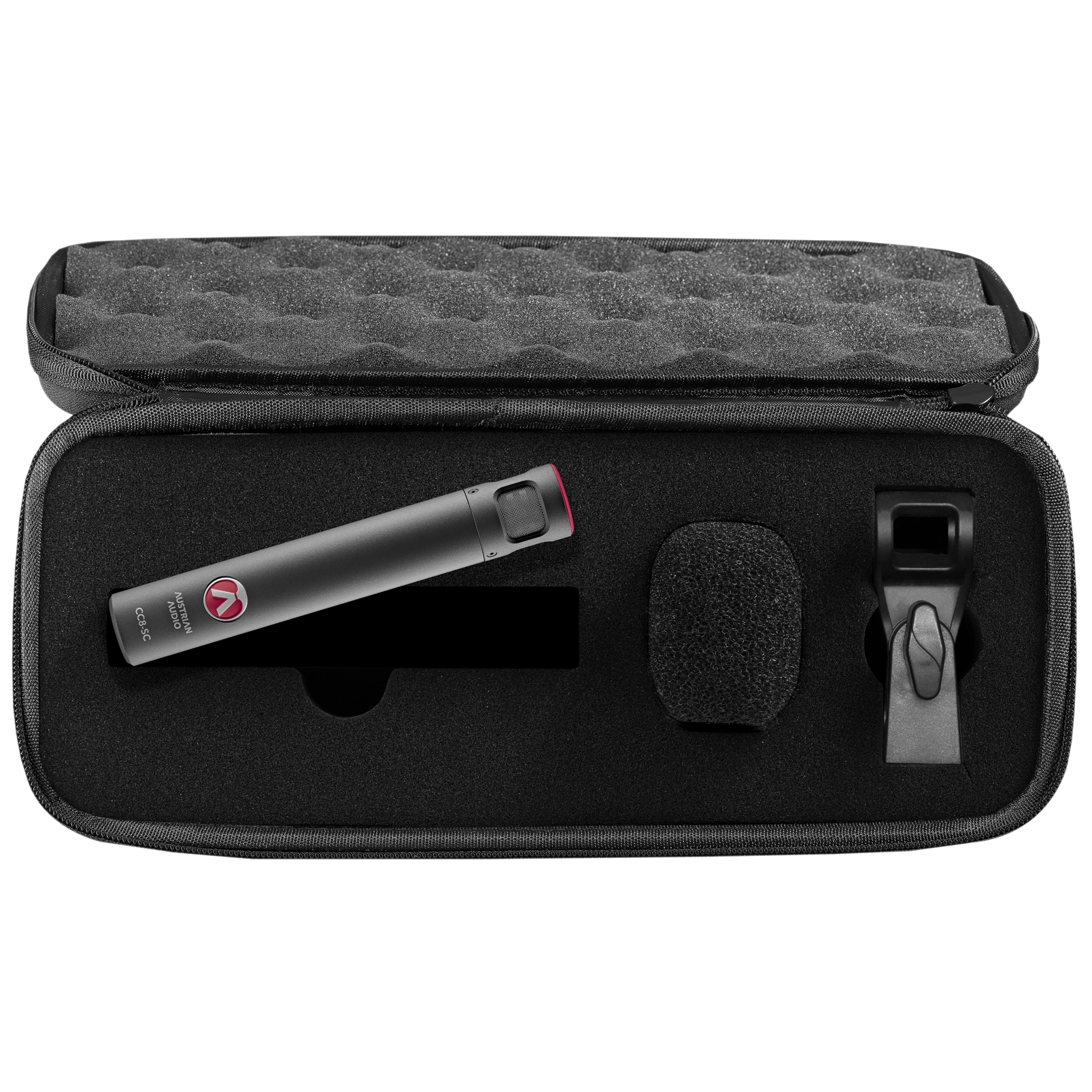

Lieferumfang:
- 1x CC8-SC Mikrofon
- 1x OCH8 Mikrofonklemme 18mm
- 1x CCW8 Windschutz
- 1x MSC8 Transportcase
- Cable: not included
- Color/ Finish: Black
- Connection plug: 3-pin XLR
- Frequency range: 20 Hz - 20 kHz
- Impedance: 275 Ohm
- Includes: Microphone, Stand Adapter, Windscreen, Case
- Instrument Choice: Allrounder
- Low-Cut-Filter: 60 Hz, 120 Hz
- Note: Matched-Paired out of the Box. Before leaving production, each CC8 is measured and tuned to a tolerance of max. +/- 0.5 dB at 1 kHz
- Phantom Power: 48 V
- Pickup pattern: Supercardioid
- Pre-Attenuation: -20 dB/-10 dB/0 dB Switchable
- Sensitivity: 18 mV/Pa
- Special Features: handmade OCC7 capsule (inspired by the legendary AKG CK1 Vintage Microphone Capsule)
- Subcategory: Instrument Microphone
- Transducer principle: Condenser
- Type: Small Diaphragm Microphone
- Weight: 160 g
- diaphragm: Small-diaphragm
- max. SPL: 155 dB
