RCF SUB 702-AS MK3

€929.00 incl. VAT

Online available Usually shipped the next day!

Walldorf: In stock, please contact in advance

Frankfurt: Available on site

33 days return policy Free returns (DE) without giving reasons

Product number: 10029500

Why session?
Items from our huge range of in-stock items are usually dispatched the same day!

★★★★★

"As always, top product and lightning-fast processing. Thank you very much."

from Georg S. from the 10/09/2022

Product information

The SUB 702-AS mk3 is a mobile, powerful 12-inch active subwoofer for live sound applications. It has a high-quality sound transducer with a ceramic drive, a powerful Class D amplifier for sound pressure levels of up to 129 dB and impressive headroom. As an ideal complement to 8 or 10 inch loudspeaker , it delivers high-quality sound in all areas of application. The volume, crossover frequency (switchable) and polarity can be adjusted on the back. The sturdy, durable wooden casing with scratch-resistant polyurea paint is easy to carry and safe to set up. Due to its versatility and high output power , the SUB 702-AS mk3 is perfect for small to medium venues and for mobile operation.

1400 watt Class D power amplifier module (1400 W peak, 700 W RMS)
12-inch woofer, bass reflex enclosure
stereo crossover
Switchable crossover
Polarity switch
Electronic equalizer, soft limiting and protection circuits
stereo XLR input, stereo XLR output
Bass motion control technology
frequency response: 40 Hz ÷ 120 Hz
Max SPL @ 1m: 129dB
Input signal: bal/unbal
Input jacks: XLR
output connections: XLR
Input sensitivity: -2 dBu/+4 dBu
High pass frequencies: 110 Hz
Low pass frequency: 80 Hz
Protection circuits: Thermal, RMS
limiter: Soft limiter
control: Volume, EQ, Phase, Xover

Subcategory: Bass box
LF-Driver: 1x 12" (30.48cm)
Design: Rectangular housing
Amplifier class: Class D
Frequency range: 40Hz - 120Hz
Max. SPL ( 1 W/1 m): 129dB
Inputs: 2xXLR
Outputs: 2x XLR (Thru, Xover)

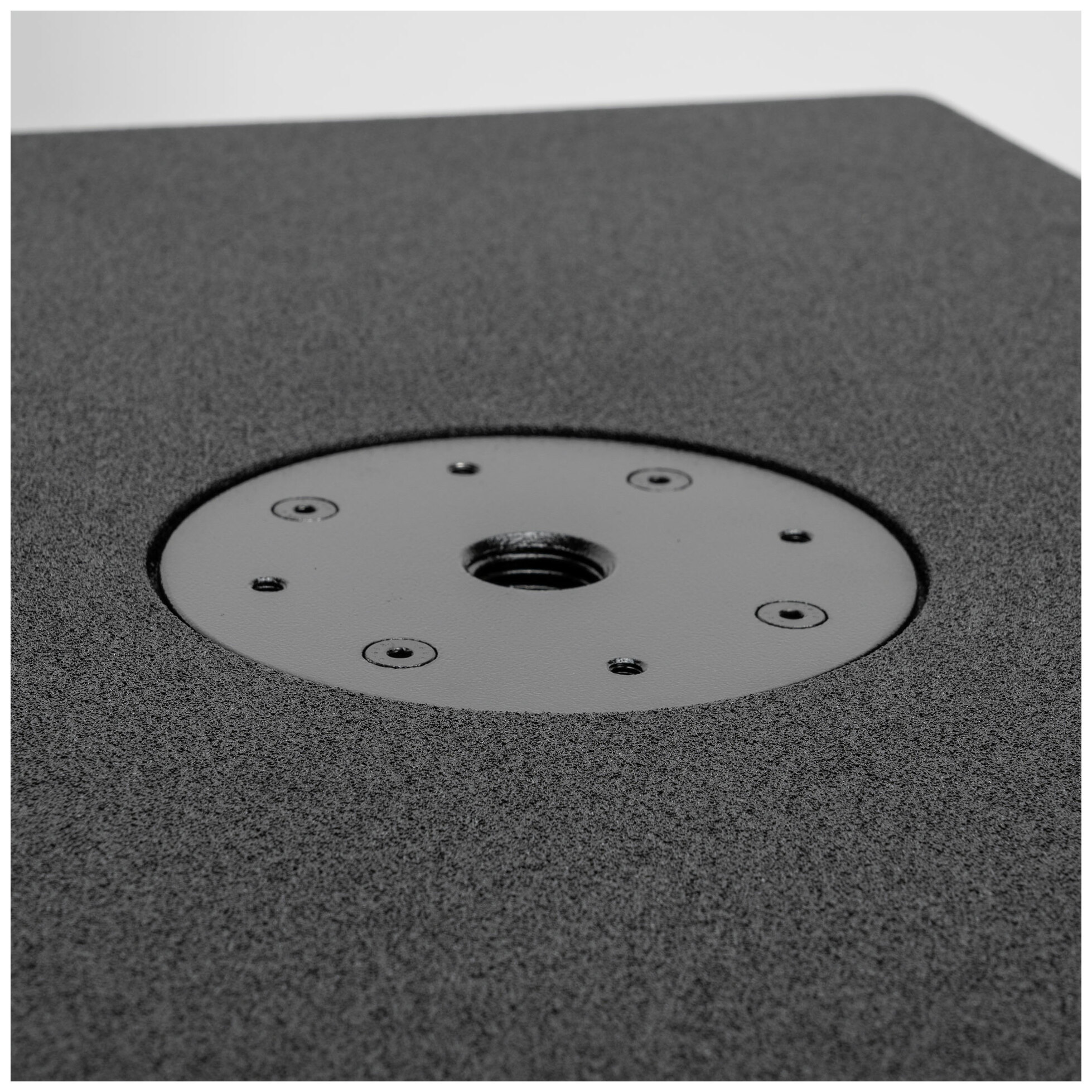

Pole flange: M20 thread
Housing subwoofer: Multiplex wood
Dimensions subwoofer: 523 x 360 x 515 mm (H x W x D)
Weight subwoofer: 21kg
Color / finish: Black

About RCF

RCF has stood for quality PA made in Italy since 1949. Our range from RCF offers both active loudspeaker and monitors as well as complete PA systems and the right accessories.
