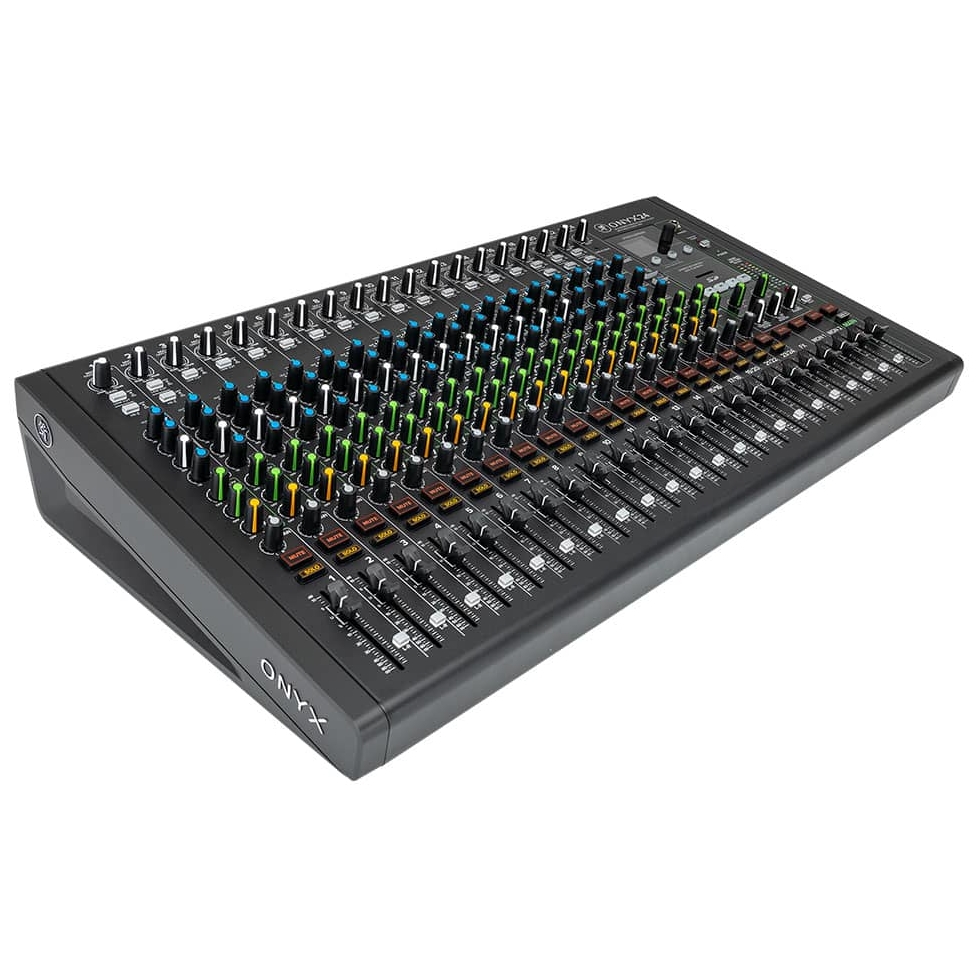

Mackie Onyx24
- Classic sound, modern features
- 18 award-winning Onyx mic preamps with up to 60dB amplification
- Premium analog circuitry guarantees extremely low-noise, studio-quality sound
- Analog/ USB channel strips with flexible routing
- Legendary Perkins “British Style” EQ's with tunable mids for classic sound from the 60's and 70's
- High-resolution DSP with customizable reverbs, delays and more, including your own effect EQ
- Recording and player via SD card or USB
- High-resolution 96kHz / 24-bit multi-track recording (24 tracks) to Mac/PC via USB
- stereo recording and player directly to SD card
- 4 assignable USB returns (2 stereo pairs)
- Recording the sum via USB with one touch
- Studio Command - Powerful and intuitive full-color display with single-knob operation
- Easy navigation through the effect parameters and integrated SD recording and player
- Visually browse files on the SD card using the built-in display
- Dedicated buttons for record, player/pause, previous and next titel
- Up to 6 user presets can be saved and easily accessed
- Professional effect processor with high resolution
- Built-in effects for use at live concerts, streams, in the studio and more
- reverb, delay, chorus and other effects
- You can set the perfect sound with customizable parameters and your own EQ
- bluetooth® streaming
- Simply pair a Bluetooth-enabled device and stream audio to a dedicated channel in the mixer
- Audio stream can be sent to the Aux Send and the sum
- Extensive mixing functions
- 3-band Perkins EQ with on/off hard bypass switches on all channels
- Hi-Z switches allow you to directly connection guitars, basses and other instruments
- 100 Hz high pass filter and 48V phantom power on all microphone channels
- stereo 1/8” input and bluetooth streaming
- stereo line inputs
- Aux/monitor output with its own send controls per channel
- Separate control room outputs
- headphone output with level control
- LED level meter with 12 segments
- Overload LED's on all channels
- PFL/AFL solo
- Footswitch input for muting the effects (footswitch not included)
- Extensive plug-in bundles
- The DAW Essentials™ bundle for Waveform OEM includes 16 powerful plugins such as equalizer, compressor, Reverber8 and limiter
- Robust chassis and professional design
- Illuminated mute and solo buttons provide a pleasant tactile feel and clear visual feedback
- Sealed rotary pots resist dust and dirt
- Built-Like-A-Tank™ steel chassis
- Clearly visible, high-contrast potentiometers
- Robust QuickGrip™ sidewalls for optimal protection and portability
- dimensions: 63.9 x 35.6 x 13.6 cm
- weight: 9.7kg
- AUX outputs: 2
- Audio Interface: 24x input / 4x output
- Bluetooth-Streaming: yes
- Channel EQ: 3-band EQ with tunable mids
- Channel Fader: 60 mm fader
- Computer connection: via USB-B Port
- Design: Desktop
- Dimensions: 640 x 356 x 137 mm
- Effects: Digital Effects
- Headphone Jack: 1x 6,3 mm Jack, Adjustable
- Hi-Z Input: 2
- Includes: Mixer, software, Power Cable
- Line in: 10x Mono Jack, 9x Jack L/R
- Low-Cut: switchable per Mic Channel
- Master-Fader: 60 mm fader
- Mic-In: 18x XLR
- Mono channels: 18
- Other in/outputs: Foot switch
- Outputs: 2x XLR/6,3 mm Jack (L/R), 6,3 mm Jack ( Headphones)
- Phantom Power: 48 V DC switchable
- Power supply: 230 V AC, 50 Hz
- Resolution: 24-Bits
- SD-Card-Player: Recorder/Player
- Sampling-Rates: 96 kHz
- Simultaneously usable inputs: 24
- Special Features: Waveform OEM with DAW Essentials Bundle included
- Stereo channels: 5
- Subcategory: Analogue Mixer
- Supported Storage Media: SD Card
- Weight: 9,2 kg
Premium Mixers for Stage, Studio & Streaming
The Mackie Onyx series combines classic analog sound with cutting-edge technology. With up to 24 channels, award-winning Onyx mic preamps, multitrack recording via USB or SD card, and built-in studio effects, it provides everything you need for professional sound—whether live, in a home studio, or in a content setup.
Thanks to features like the legendary “British-style” Perkins EQ, an intuitive studio command interface with full-color LCD, Bluetooth® streaming, a rugged metal chassis, and smart QuickGrip side handles, the series offers maximum versatility and ease of use.
Onyx stands for clear sound, flexible recording, and uncompromising quality—made for creators.
Learn more about:
Professional Sound with Character and History
Mackie is a cult brand in the pro audio world – known for rugged design, smart features, and outstanding sound. Since its beginnings in a garage in Washington in 1989, the name has stood for affordable, long-lasting audio technology that appeals to both beginners and professionals. The vision: better sound for everyone – in the studio, on stage, in podcasts, or during livestreams.
With iconic products like the CR and MR studio monitors, the resilient Thump and SRM speakers, or the intuitive USB microphones and mixers from the ProFX and Onyx series, Mackie is at home in every creative environment. Whether recording, live mixing, or content creation – Mackie delivers tools you can count on.
Legendary milestones like the CR-1604 mixer or the SRM450 have shaped entire generations – and with innovative tools like the SHOWBOX or the flexible Big Knob series, Mackie remains a strong partner for modern audio setups. Whether in a home studio or on tour: Mackie stands for uncompromising quality – “Built Like a Tank.”
